We produce a wide range of power transformers with power ratings up to 750 MVA and voltages up to 500 kV.
They can be used for transmission substations and generation step-up units and are ideal for heavy industries like:
- Oil and gas refining
- Chemicals and petrochemicals
- Cement
- Steel
- Rolling mills
- Mining
- Desalination
- Pumping stations
23000KM
Distribution Network
17
Countries
Projects

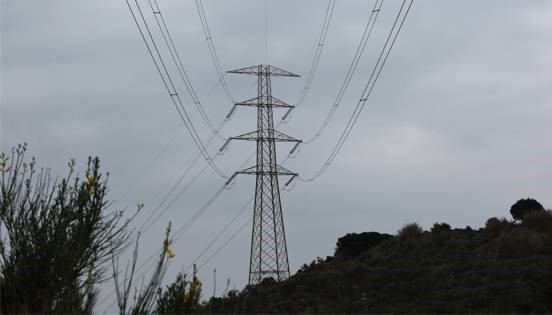

Electrical works for Al Niaba Al Ama, Egypt
Client: National Company for General Contracting & Supplies
Supply, installation, testing and commissioning of electrical works including:
- Kiosks
- LV distribution boards
- Lighting equipment
- Cables
- Communication networks
- CCTV
- Earthing systems

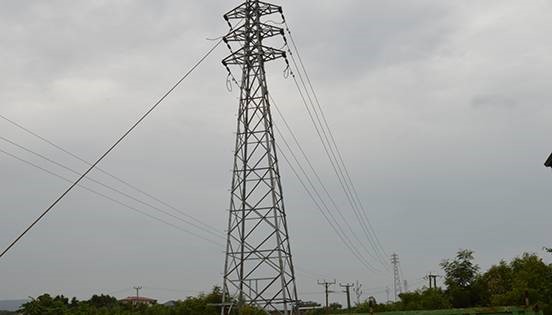

Supply of distribution materials, Ethiopia
Client: Ethiopian Electric Power Corporation-EEPCo
Supply of:
- Distribution transformers 33kV and 15kV three phase network.
- Medium and low voltage 33kV and 15kV switch gear
- AAAC conductor & ABC cables
- Overhead line accessories
- Insulators 33kV and 15kV
- Hardwares

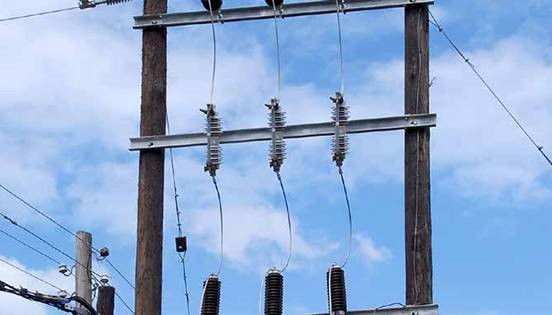

Supply and installation of material for transmission line from Nyankora-Nasho, Rwanda
Client: Electrogaz
Supply & installation on turkey basis of:
- 33kV medium voltage OHTL with a total length of 40kms
- 11kV low voltage OHTL with a total length of 8kms
- 6 x 200KVA transformers
- 40 kms OPGW connection

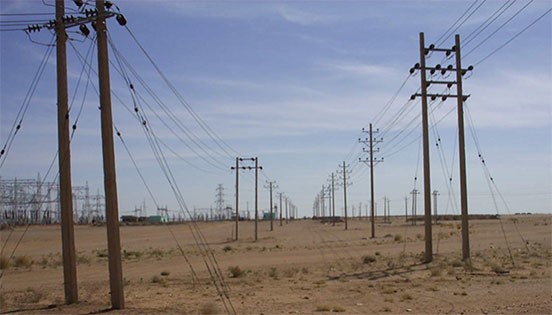

MV & LV Network
Client: National Company for Electricity
Location: Sudan (2005-2008)
- MV & LV Networks for North Governorate
- MV & LV Networks for River Nile Governorate
- MV & LV Networks (Khartoum Bhri-Omdurman)
- Low Voltage Network extension for Northern State
- Low Voltage Network extension for River Nile Governorate
Total Projects’ Quantities:
- 52,823 Concrete poles of 11 ft. height & 136,661 concrete poles of 9 ft. height
- 2,890 Transformers (100 & 200kVA) & 76 Transformers of 1000kVA
- 16,000km of Aluminum wire of size 1*185, 1*95 and 1*70 mm2
- 2,606 kms wires Aluminum Cable 1*120, 1*95
- 19km of MV underground cables 3*70 & 173km Underground cables of size 3*185mm2
- 3,500kms of wire ABC Cables 4*70mm2
- 5x 33/11kV Substation

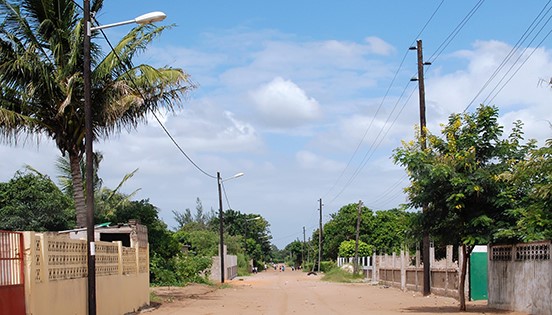

Network Expansion and Service Connections in Matola Region, Maputo Province Project
Client: EDM
Location: Mozambique
Design, supply, installation, testing and commission on turnkey basis the following:
- 33kV OHTL with total length 33km
- 415 V ABC low voltage network with total length 48km
- 36 distribution transformers
- 1350 street lighting
- 14260 service connections
Project for Electrification EVINA-YONG city P-28-2010 Project
Client: Ministry of Mining
Location: Equatorial Guinea
Design, supply, installation, testing and commission on turnkey basis the following:

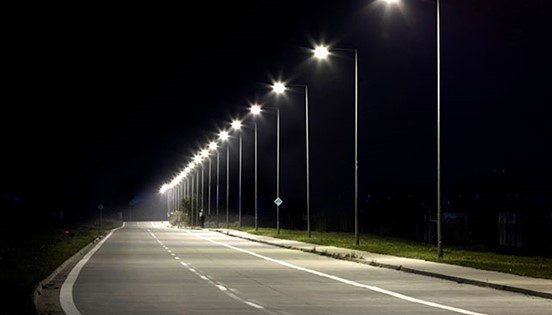

- Supply and Install 1020 Street lighting steel poles 8m
- Supply and Install 14 Kiosks 400 & 630kVA
- Supply and Install 12km Medium voltage cable 3*150mm2
- Supply and Install 151 Low Voltage Panels.
- Supply and Install 120km Underground Low Voltage cables
- Supply and Install 2200 three- and single-phase prepaid Meters
- Supply and install two Generators 1000kVA with all required civil works and spare parts

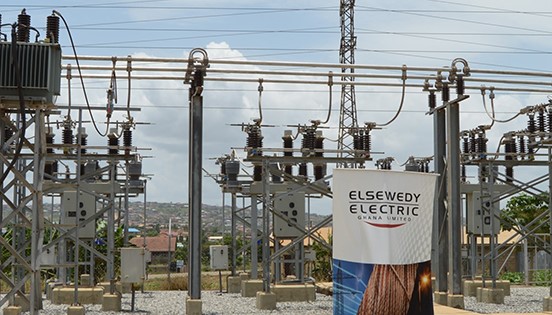

ECG/ELSW/01/08 P-24-08
Client: ECG
Location: Ghana
Design, supply, installation, testing and commission on turnkey basis the following:
- Construction of 50km,2x40 MVA,33kV Overhead lines
- Darkuman33/11kV Indoor Substation
- Gbawe Adjaman33/11kV Outdoor Substation
Upgrading of Distribution Management System and Introducing of Advanced Meter
Client: EETC
Location: Egypt
Partnership Between Elsewedy Electric T&D and Toyota Tsusho
- Rehabilitation of existing Distribution management system (DMS) in NCEDC
- Introducing Advanced mete infrastructure in NCEDC
- Upgrading communication systems
Structured cabling is the passive infrastructure that supports the transmission of data, voice, and video signals in a building or campus. It consists of various components, including twisted pair cables, fiber optic cables, and cable accessories. Twisted pair cables are the most common type of cabling used in structured cabling systems. They are composed of two insulated copper conductors that are twisted together to reduce electromagnetic interference (EMI). The most common types of twisted pair cables used in structured cabling are UTP (Unshielded Twisted Pair) and FTP (Foiled Twisted Pair). Fiber optic cables are another type of cabling used in structured cabling systems. They are made up of glass or plastic cores that transmit light signals. Fiber optic cables are generally used for long distances or high-bandwidth applications.
Structured cabling systems typically include a variety of components, such as closures, patch panels, outlets, modules, racks, and cabinets. Closures are used to terminate and splice cables. Patch panels are used to connect cables to other network devices. Outlets are used to provide access to the network for end users. Modules are used to connect cables to patch panels. Racks and cabinets are used to house and organize cabling components. The type of cabling and components used in a structured cabling system will depend on the specific needs of the network.
