Cat5e Connection Module
• Cat5e keystone jack
• IDC technology
• Available in both shuttered & unshuttered ranges
• RJ45 Jack Housing: ABS+PC, UL 94-V0
• Min. 750 cycles
• IDC re-installing cycles: ≥ 20 cycles
• T-568A and T-568B color code identification
• ANSI/TIA-568.2-D, ISO/IEC 11801-1, Class D
• IEC 60603-7, IEC 60512-99-002, IEEE 802.3bt, 4PoE++

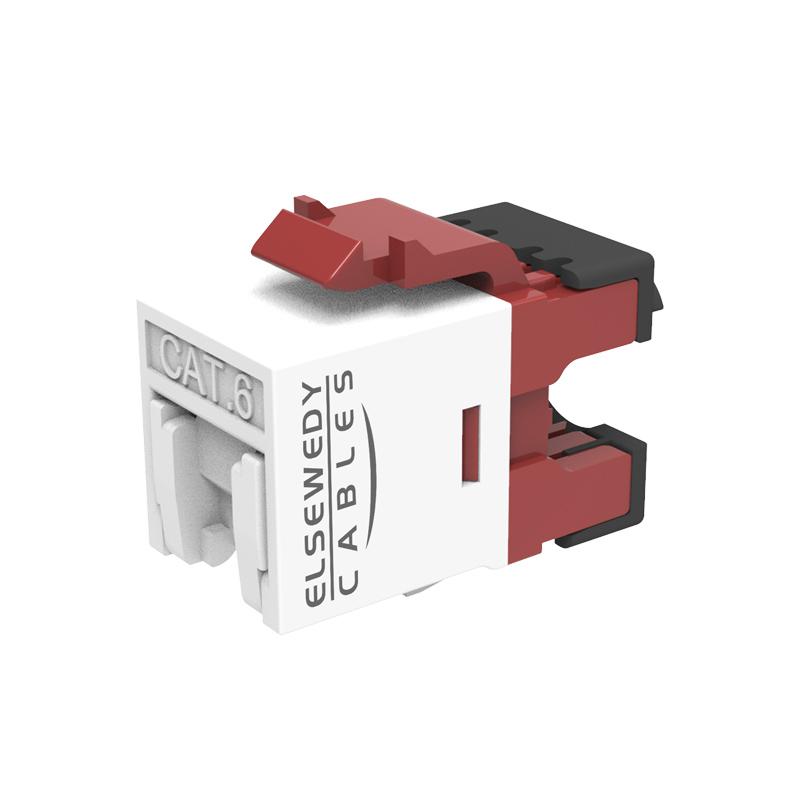

Cat6 Connection Module
• Cat6 keystone jack
• IDC technology
• High-density design
• Shielded & unshielded types are provided
• Available in both shuttered & unshuttered ranges
• Min. 750 cycles
• IDC re-installing cycles: ≥ 20 cycles for toolless type
• T-568A and T-568B color code identification
• ANSI/TIA-568.2-D, ISO/IEC 11801-1, Class E
• IEC 60603-7, IEC 60512-99-002, IEEE 802.3bt, 4PoE++
Cat6a Connection Module
• Cat6a keystone jack
• IDC technology
• High-density design
• Shielded & unshielded types are provided
• Available in both shuttered & unshuttered ranges
• Min. 750 cycles
• IDC re-installing cycles: ≥ 20 cycles
• T-568A and T-568B color code identification
• ANSI/TIA-568.2-D, ISO/IEC 11801-1, Class EA
• IEC 60603-7, IEC 60512-99-002, IEEE 802.3bt, 4PoE++
Cat8 Connection Module
• Cat8 keystone jack
• IDC technology
• High-density design
• Shielded
• Shuttered
• Min. 750 cycles
• IDC re-installing cycles: ≥ 20 cycles
• T-568A and T-568B color code identification
• ANSI/TIA-568.2-D, ISO/IEC 11801, Class I
• IEC 60603-7, IEC 60512-99-002, IEEE 802.3bt, 4PoE++
Field Termination Plug
• Press-fit assembly process ensures system reliability and stability
• Wires diameter range: 26-22 AWG
• Available in wide range (Cat6 - Cat8)
• Min. connection cycles std/type: 750
• Min. module re-termination: 20 cycles
• T568A & T568B wiring
• Quick & reliable installation
• ANSI/TIA-568.2-D, ISO/IEC 11801-1, Class D/E/EA/I
• IEC 60603-7, IEC 60512-99-002, IEEE 802.3bt, 4PoE++
In-line Coupler
• Easy way to link several networking cables
• Could be snapped into a blank patch panel
• Slim & compact design
• Min. 750 cycles
Applications:
- Links several networking cables
- Connects devices with extending two patch cords by inline coupler
IP68 Keystone Module
• Meets IP68 requirement
• Prevents network parts from moisture, dirt, and insects entering into the network device
• Min. 750 cycles

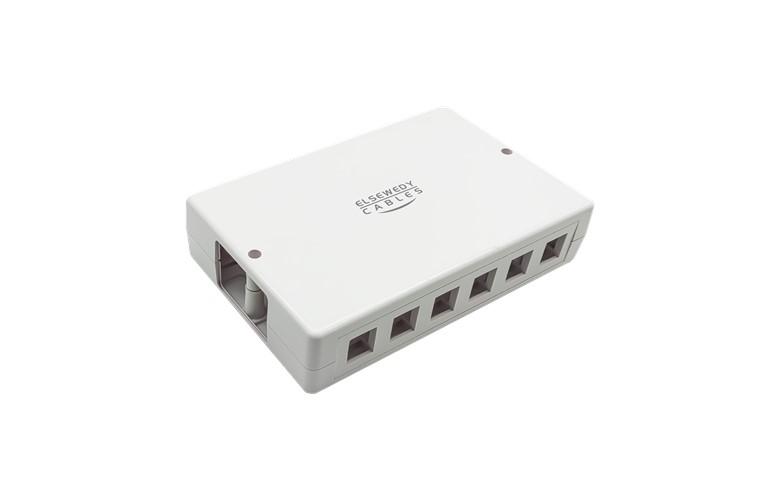

• Fits with IP44 faceplate and IP68 surface mount box
• ANSI/TIA-568.2-D, ISO/IEC 11801
• Complies with POE plus test
cat5e
cat6
Cat6a
Cat7
Cat8
connection module
patch cord
Patch Panels & Cable management

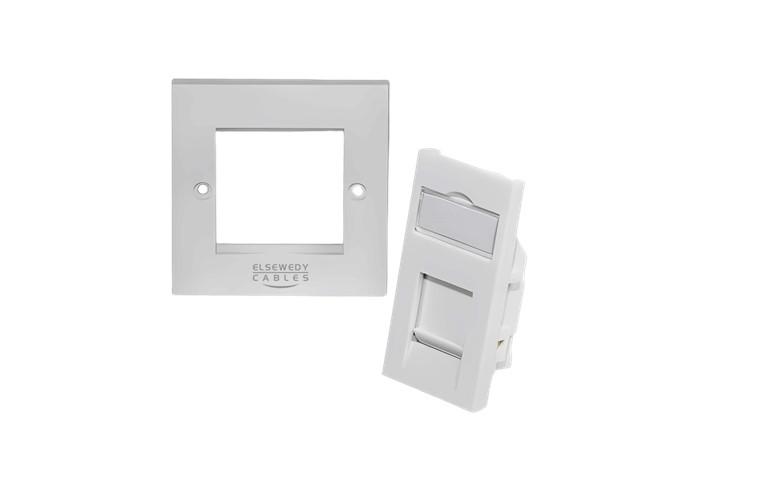

Faceplates

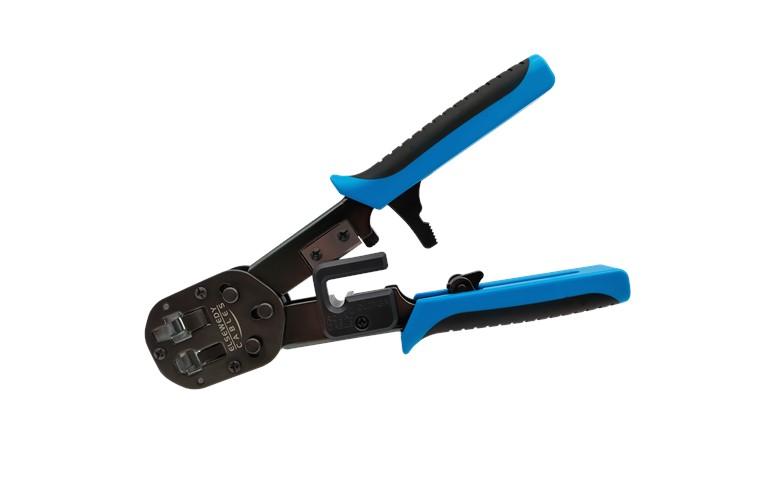

copper tools
Coaxial Cables

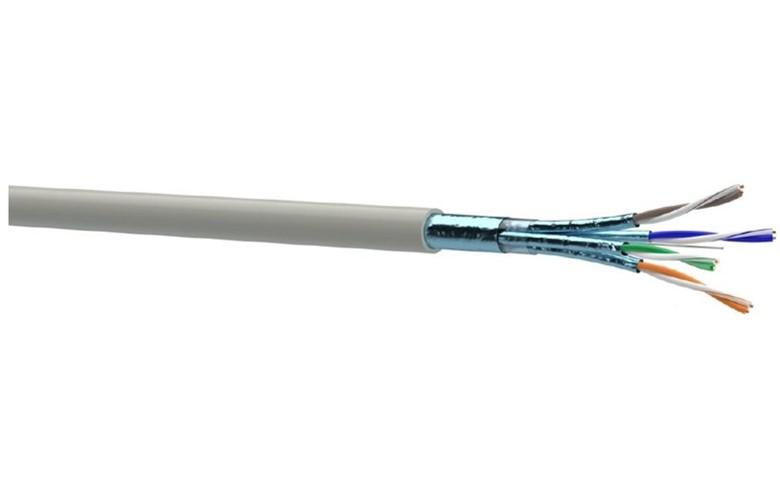

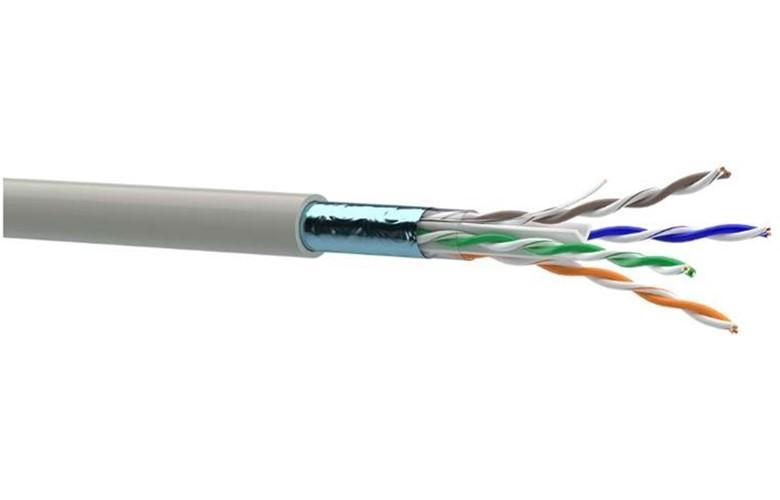

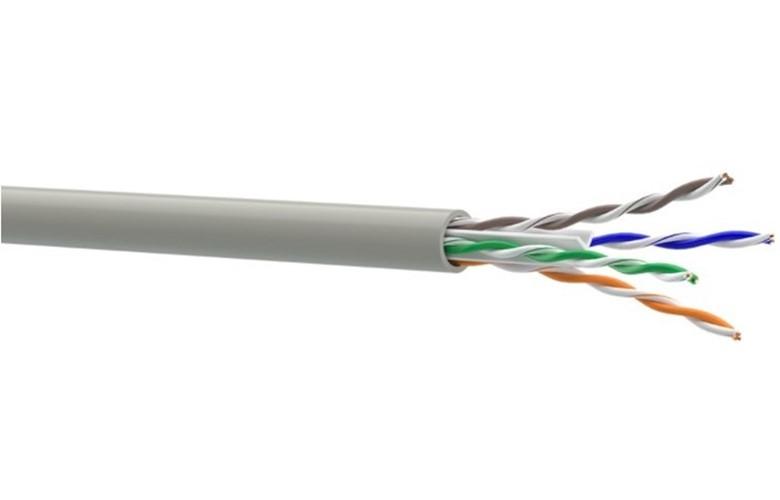

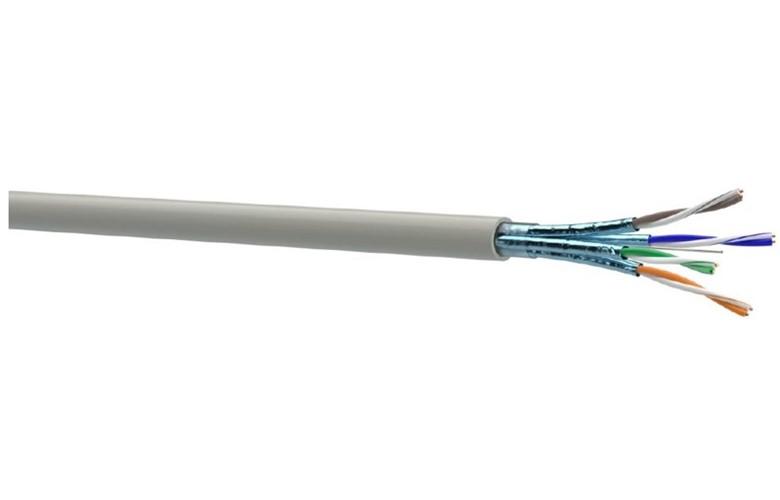

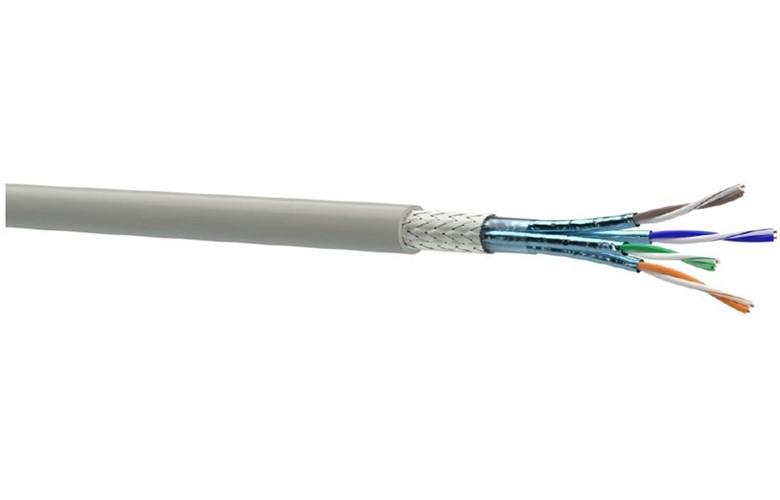

LAN Cable
